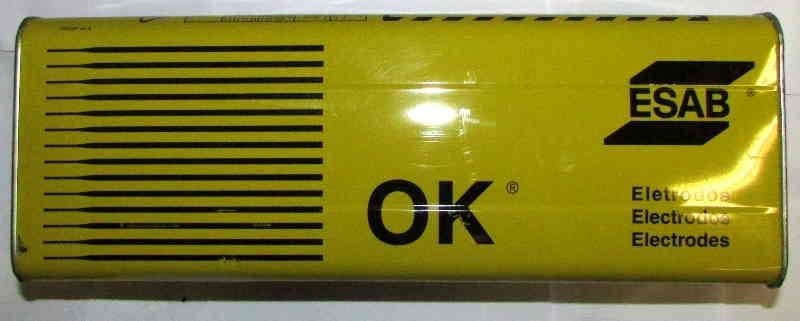

ESAB 2708253044 Arcos Nufive 6011 2.5mm (20kg)

Save £124.87
Free UK Delivery*
ESABOur Code: 0415 ESAB's Code: 2708253044 Shelf: EPS01 Group: 007

Price (per tin):
£305.70 £430.57

Incl. Tax: £366.84

Or Call Us

Features

  • A 6011 grade electrode for AC & DC welding.
  • Designed for root beads & hot passes in a wide range of pipe steels
  • Suitable for vertical up & down welding
  • 20 kilo tin
  • Amperage range; 40 to 80 amps
  • E6011

Specifications

Weight 20 kg
Length 350mm
Data Sheet https://www.rapidwelding.com/files/2708253044.pdf
Alloy Type CMn
Coating Type Cellulosic
Polarity AC, DC+-
Minimum AC OCV 65
Electrode Classifications EN 499: E 38 2 C 11, SFA/AWS A5.1: E6011, BS 639 (1986): E 43 32 C (14), EN ISO 2560-A: E 38 2 C 11
Welding Positions 1, 2, 3, 4, 5, 6, 7, 8, 9
Diameter 2.5mm
Current 40-75A
Weight (W) 1.6 kg / 100 electrodes
Efficiency (") 77.9 g weld metal x 100 / g core wire
Effective Value (N) 0.79 kg weld metal / kg electrodes
Changes (B) 100 number of electrodes / kg weld metal
Deposit Rate at 90% of max current (H) 0.7 kg weld metal / hour arc time
Fusion Time at 90% of max current (T) 54 s / electrode
Arc Voltage (U) 34 V
All Weld Metal Composition C: 0.03-0.13%, Si: 0.05-0.25%, Mn: 0.25-0.55%, P: <0.020%, S: <0.020%
Mechanical Properties of Weld Metal (ISO) ReL (MPa): 380 min, Rm (MPa): 470-560, A4-A5 (%): 20 min, Charpy V at -20°C (J): 47 min, Charpy V at -29°C (J): 27 min
Mechanical Properties of Weld Metal (AWS) Rp0.2 (MPa): 330-410, Rm (MPa): 415-495, A4-A5 (%): 22-26, Charpy V at -20°C (J): 47-70, Charpy V at -29°C (J): 27-40
