Features
- True Colour Lens Technology – Enhances visibility and clarity for a more natural view
- Large Viewing Area (100 x 53mm) – Offers an expansive field of vision
- Ultra-Fast Auto-Darkening – Reacts in 1/30,000th of a second for seamless protection
- External Grinding Mode Switch – Easily transition between welding and grinding
- Variable Shade Control (DIN 5-13) – Adjust darkness levels for various welding applications
- Lightweight, High-Impact Polyamide Nylon Shell – Ensures comfort and durability
- Fully Adjustable Headgear – Provides a secure, custom fit for all users
- Solar-Powered with Backup Battery – Increases energy efficiency and reliability
- Locking Headgear with Full Neck Coverage – Enhances protection and stability
- Compliant with Safety Standards – Meets BS EN 166:2002, BS EN 175, BS EN 379, and more
Specifications
Material | High-Impact Polyamide Nylon |
Last Modified | 28/06/2025, 08:26:34 |
Weight | 0.47 kg |
Viewing Size | 100 x 53mm (3.94” x 2.08”) |
Cartridge Size | 110mm x 90mm (4.33” x 3.54”) |
Grind Mode | Yes |
External Shade Control | Yes |
Light State | DIN Shade 4 |
Dark State | DIN Shade 5-13 (Variable) |
Switching Time (Light to Dark) | 1/30,000th of a second |
Dark to Light Delay | 0.1-1.0 seconds (Externally adjustable) |
Sensitivity Adjustment | Yes (Variable) |
UV/IR Protection | Permanent Shade DIN16 |
Power Supply | Solar cells with replaceable battery pack |
Battery Life Expectancy | Approx. 2 years |
Minimum Amp Requirement | 5A |
Power On/Off | Fully Automatic |
Storage Temperature | -20ºC to +70ºC (-4ºF to -158ºF) |
Operating Temperature | -10ºC to +60ºC (14ºF to 140ºF) |
Recommended Use | TIG Welding and other applications |
Warranty | 24 months |

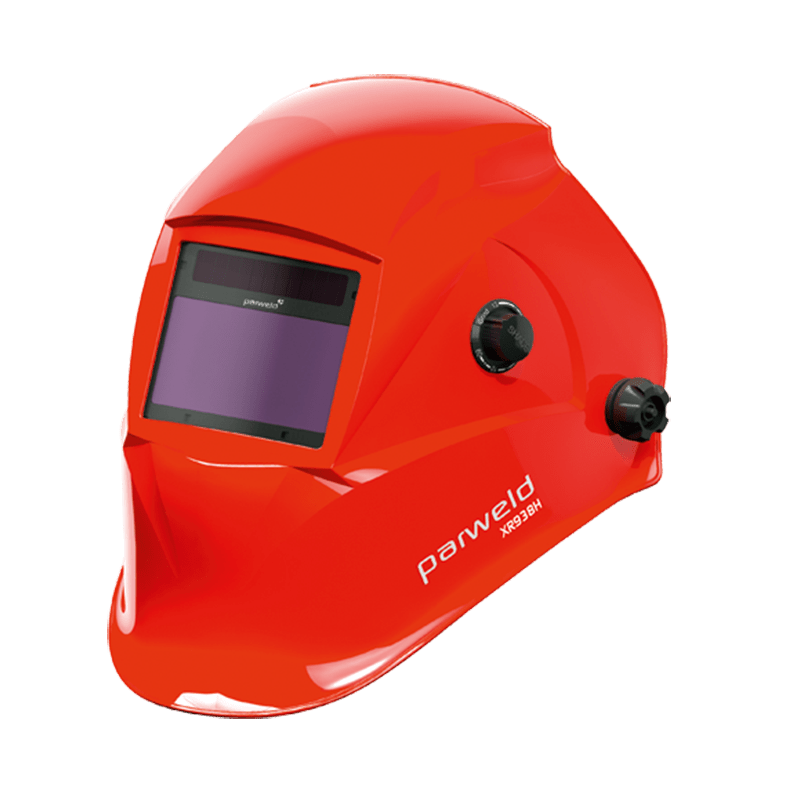

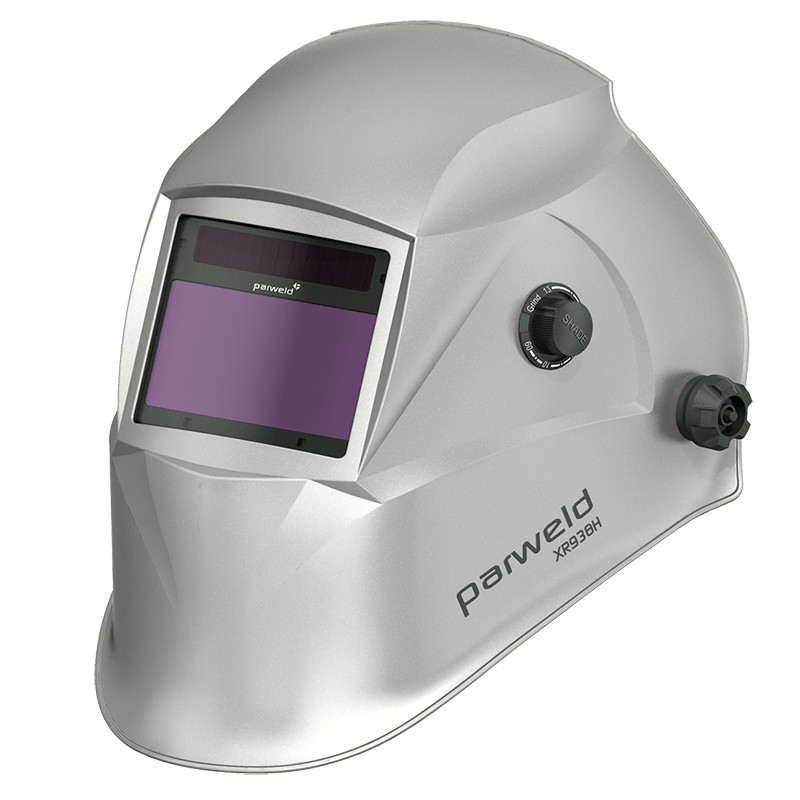

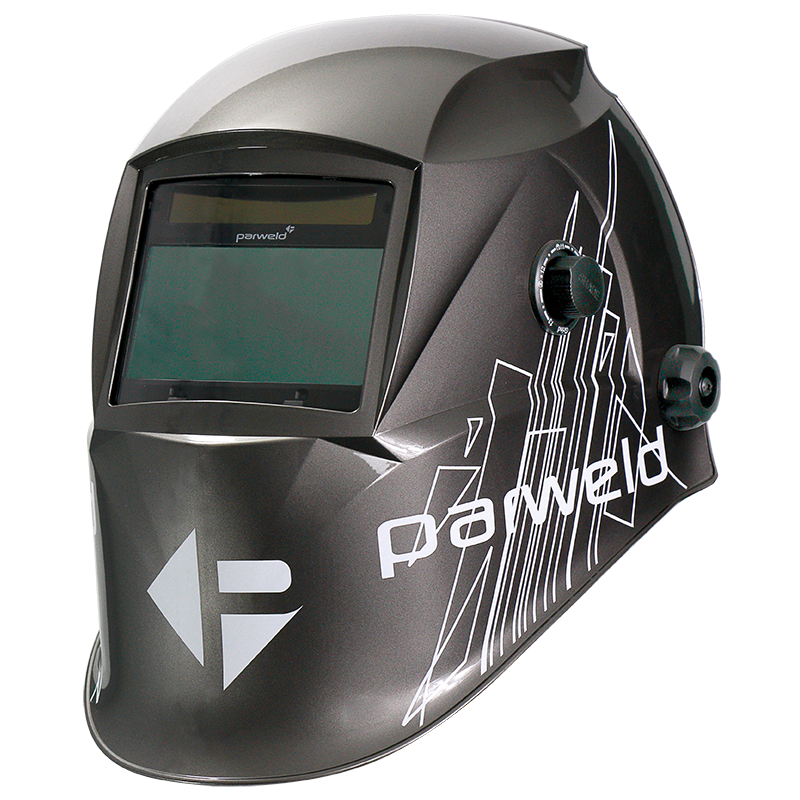

Available Designs | Graphite, Blue, Eagle, Flame, Red, Silver |
Compliant with Safety Standards | BS EN 166:2002, BS EN 175, BS EN 379, and more |
Description
See codes 1785 and 1728 for Replacement Cover Lens
Features:
True colour lens
Slim and leightweight
Automatic light adjustment from light to dark in 1/30,000th of a second
Shade control from Din 5-13
Variable sensitivity
Grinding mode
Variable delay
Viewing ares 100mm x 52mm
Full face coverage
Suitable for TIG welding
Automatic power on/off
Battery life expectancy 2 years
UV/IR protection up to shade DIN 16
24 months warranty
