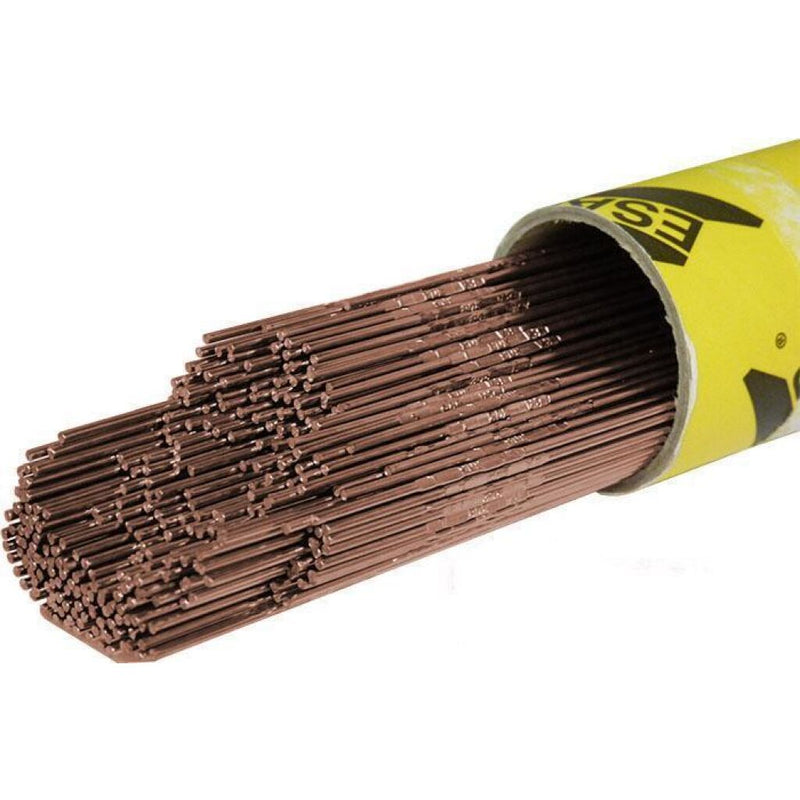

ESAB 126224R150 12.62 TIG Wire For Steel 2.4mm (5Kg=Pkt) TIGROD

Mainland UK Delivery Tomorrow (Fri 05 Sep) Order by 1:00PM Today
ESABOur Code: 0862 ESAB's Code: 126224R150 Shelf: R04 Group: 014

Price (per pack):
£92.33

Incl. Tax: £110.80

Or Call Us

Features

  • Bare, triple-deoxidised copper coated solid wire electrode
  • Wire electrode designation ER70S-2 (SFA/AWS A5.18)
  • Conforms to EN ISO 14341-A G 42 3 C1 2Ti classification
  • Alloy type: Carbon-manganese steel (Mn/Si-alloyed)
  • Diameter: 2.4 mm
  • Spool weight: 5 kg
  • Suitable for Gas Tungsten Arc Welding (GTAW) and Gas Metal Arc Welding (GMAW) of mild steels
  • Ideal for welding non-alloyed, semi-killed and rimmed steels
  • Performs reliably on rusty or dirty steel surfaces
  • Treated with ESAB’s Advanced Surface Characteristics (ASC) technology
  • Excellent arc start properties
  • Trouble-free feeding at high wire speeds and long feed distances
  • Stable arc at high welding currents
  • Extremely low spatter levels
  • Low fume emission
  • Reduced contact tip wear
  • Improved corrosion protection of the wire
  • Typical yield strength: 570 MPa
  • Typical tensile strength: 625 MPa
  • Elongation: 26 %
  • Charpy V-notch impact: 180 J at –40 °C
  • Shielding gas recommendation: I1 (EN ISO 14175)
  • Typical wire composition: C 0.06 %, Mn 1.1 %, Si 0.6 %, S 0.009 %, P 0.008 %, Ni 0.03 %, Cr 0.12 %, Mo 0.01 %, V 0.01 %, Al 0.12 %, Cu 0.05 %, Ti+Zr 0.13 %

Specifications

Last Modified 28/06/2025, 08:26:36
Weight 5 kg
Data Sheet https://esab.com/us/nam_en/products-solutions/filler-metals-pdf?filename=mdm-productfamily-20032&siteid=nam_en&countryname=USA&countrylocale=en-us
Wire diameter 2.4 mm
Alloy type Carbon-manganese steel (Mn/Si-alloyed)
Classifications SFA/AWS A5.18 : ER70S-2; EN ISO 14341-A : G 42 3 C1 2Ti
Approvals CE : EN 13479; UKCA : EN 13479
Shielding gas I1 (EN ISO 14175)
Typical tensile properties (As Welded) Yield strength 570 MPa; Tensile strength 625 MPa; Elongation 26 %
Typical Charpy V-Notch properties (As Welded) Testing temperature −40 °C (−40 °F); Impact value 180 J (133 ft-lb)
Typical wire composition (%) C 0.06; Mn 1.1; Si 0.6; S 0.009; P 0.008; Ni 0.03; Cr 0.12; Mo 0.01; V 0.01; Al 0.12; Cu 0.05; Ti+Zr 0.13

Description

A triple deoxidized copper-coated rod designed for GTAW of mild steel and fine grained structural and pressure vessel steels as well as shipbuilding steels.

The rod is capable of producing high quality welds in semi-killed and rimmed steel as well as various carbon levels

Because of added deoxidants, Al-Ti-Zr, Tigrod 12.62 can also be used for welding steels with a rusty or dirty surface without any sacrifice of weld quality
