Features
- Copper coated, manganese-silicon alloyed rod optimized for GTAW on general engineering and structural steels (minimum yield strength 420 MPa).
- Designed for welding with pure argon shielding gas (I1) for clean, consistent welds.
- Optimized chemistry reduces post-weld rework and lowers overall cost of ownership.
- Available in Marathon Pac cardboard bulk drum packaging for efficient storage and handling.
- Excellent feeding performance for high-speed welding and long feeding distances.
- Typical tensile properties (as welded, EN Ar (I1)): yield strength 470 MPa; tensile strength 560 MPa; elongation 26 %.
- Typical Charpy V-Notch impact values (as welded, EN Ar (I1)): 70 J at −30 °C; 60 J at −40 °C.
- Classification per EN ISO 636-A and SFA/AWS A5.18: W 42 3 3Si1; W 3Si1; ER70S-6.
- Approved to CE and UKCA EN 13479 and VdTÜV 11842 standards.
- Weld metal analysis (Ar): C 0.05 %; Mn 1.4 %; Si 0.8 %; S 0.015 %; P 0.015 %.
- Wire composition: C 0.078 %; Mn 1.46 %; Si 0.85 %.
Specifications
Weight | 5 kg |
Classifications | EN ISO 636-A: W 42 3 W3Si1, EN ISO 636-A: W3Si1, SFA/AWS A5.18: ER70S-6 |
Approvals | CE : EN 13479; UKCA : EN 13479; VdTÜV : 11842 |
Alloy Type | Carbon-manganese steel |
Typical Tensile Properties Condition EN Ar (I1) As Welded | Yield Strength 470 MPa, Tensile Strength 560 MPa, Elongation 26% |
Typical Charpy V-Notch Properties Condition EN Ar (I1) As Welded | Testing Temperature -30 °C, Impact Value 70 J |
Typical Weld Metal Analysis % Ar | C 0.05, Mn 1.4, Si 0.8, S 0.015, P 0.015 |
Typical Wire Composition % | C 0.078, Mn 1.46, Si 0.85 |
Last Modified | 28/06/2025, 08:27:28 |
Length | 100 cm |
Data Sheet | https://esab.com/gb/eur_en/products-solutions/filler-metals-pdf?filename=mdm-productfamily-31229&siteid=eur_en&countryname=GBR&countrylocale=en-zz |
Classification | EN ISO 636-A : W 42 3 3Si1; EN ISO 636-A : W 3Si1; SFA/AWS A5.18 : ER70S-6 |
Shielding Gas | I1 (EN ISO 14175) |
Typical Tensile Properties (as welded, EN Ar (I1)) | Yield Strength: 470 MPa; Tensile Strength: 560 MPa; Elongation: 26 % |
Typical Charpy V-Notch Properties (as welded, EN Ar (I1)) | -30 °C: 70 J; -40 °C: 60 J |
Typical Weld Metal Analysis (Ar) | C: 0.05 %; Mn: 1.4 %; Si: 0.8 %; S: 0.015 %; P: 0.015 % |
Typical Wire Composition | C: 0.078 %; Mn: 1.46 %; Si: 0.85 % |
Description
SFA/AWS A5.18: ER70S-6

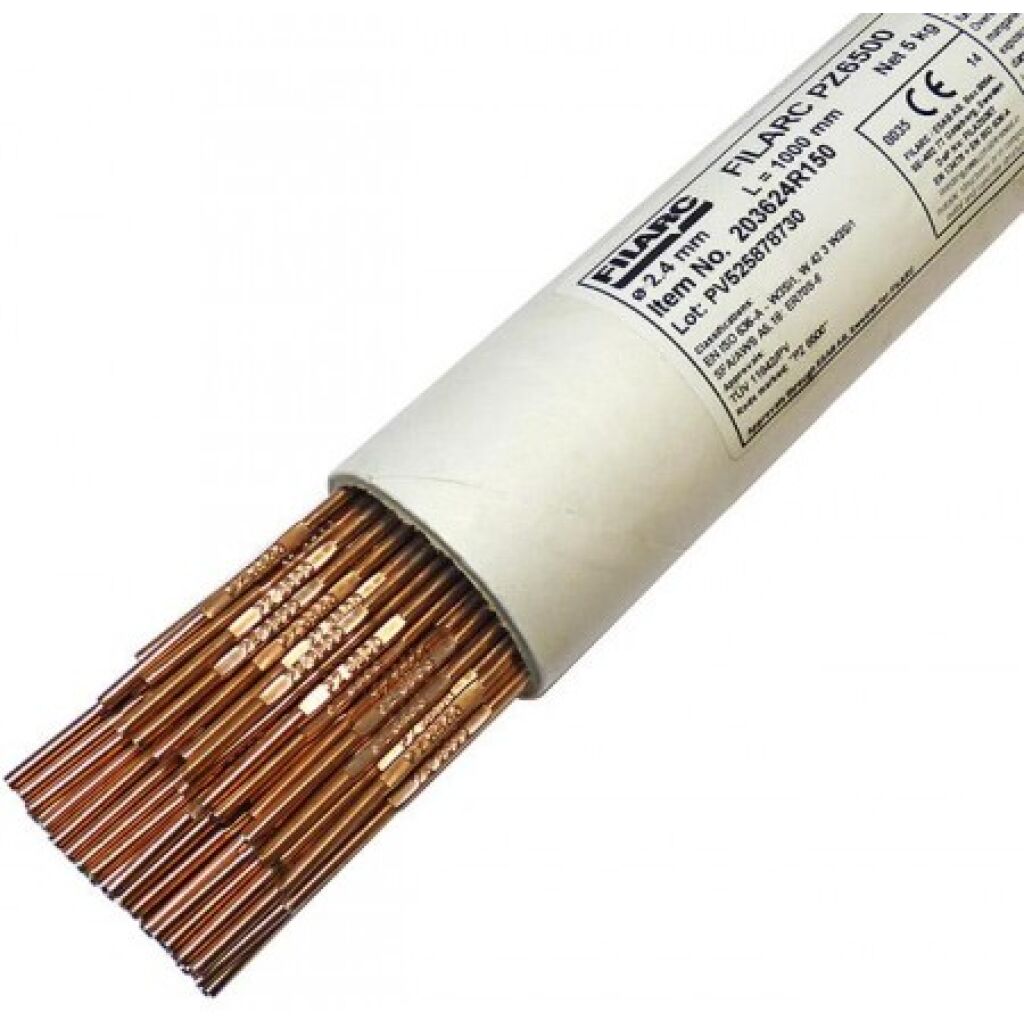

Copper coated deoxidised steel rod for TIG welding of mild steel.
