Features

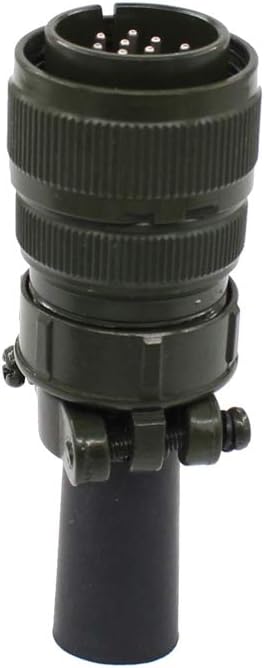

- 14-pin Amphenol style remote switch plug with cable clamp for Miller welding equipment.
- Compatible with Miller model 141162 and equivalent to Miller p/n 136961 (metal) and 141162 (plastic).
- Cord-mounted male plug designed for remote amperage control and remote wire feeders.
- Rated voltage: 200V; Working current per pin: 10A.
- Pin diameter: 1.6mm; 14 pins for versatile connectivity.
- Includes fitting instructions for easy installation.
- Durable construction suitable for demanding welding environments.
- Mechanical life: 500 cycles; Insulation resistance: ≥1000MΩ.
- Thread: 1-1/8'' -18 UNEF 2B; Type M plug.
- No batteries required or included.
Specifications
EAN Code | 675663433320 |
Weight | 0.1 kg |
Length | 13.3 cm |
Width | 11.5 cm |
Height | 4.8 cm |
Number of pins | 14 |
Pin diameter | 1.6mm |
Thread | 1-1/8'' -18 UNEF 2B |
Rated voltage | 200V |
Working current (per pin) | 10A |
Insulation resistance | ≥1000MΩ |
Tangency resistance | ≤20MΩ |
Mechanical life | 500 cycles |
Specification met | NEMA |
Plug type | Type M |
Ambient temperature range | -55°C to +100°C |
Comparative humidity | 90% ~ 95% at +44°C ±2°C |
Batteries included | No |
Batteries required | No |
Package contents | 1 x 14-pin male plug with cable clamp and fitting instructions |
