Description
- ArcReach® capabilities eliminate the time spent tracing weld cables hundreds of feet back to the power source because weld operators can make adjustments at the ArcReach wire feeder or remote.
- Cable Length Compensation (CLC™) adjusted at the power source to account for setting means output is automatically voltage drop due to long weld cables, ensuring the operator’s preferred weld parameter settings.
- Regulated metal deposition (RMD®) and pulsed MIG are fully supported, enabling operators to use these advanced processes in the field for faster, more efficient welds.
- Jobsite mobility is made easy with the smallest and lightest machine in its amperage class.
- True multiprocess system provides conventional stick, TIG, FCAW, and MIG welding as well as the advanced technologies Of RMD and pulse.
- Fleet compatibility. ArcReach-equipped power sources and wire feeders work with non-ArcReach equipment; however, the Complete ArcReach benefit is only realized with the ArcReach system.

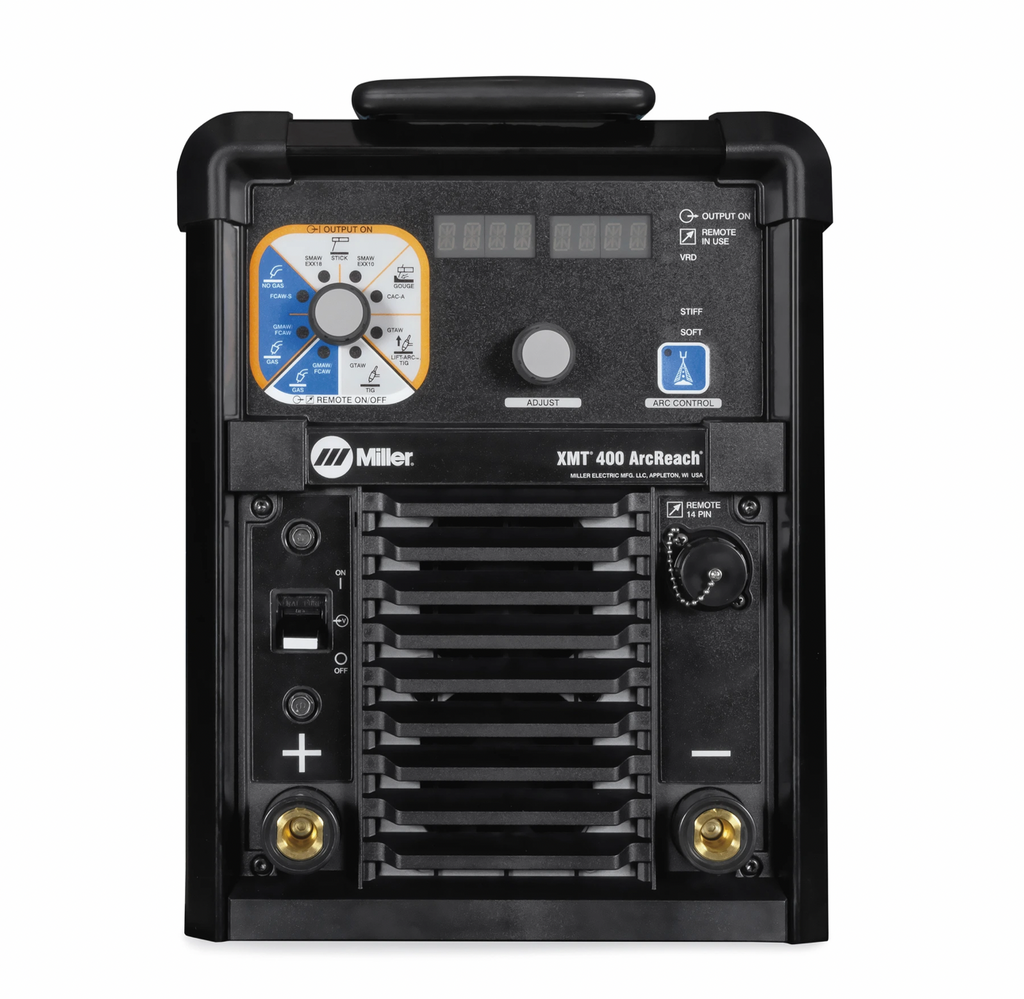

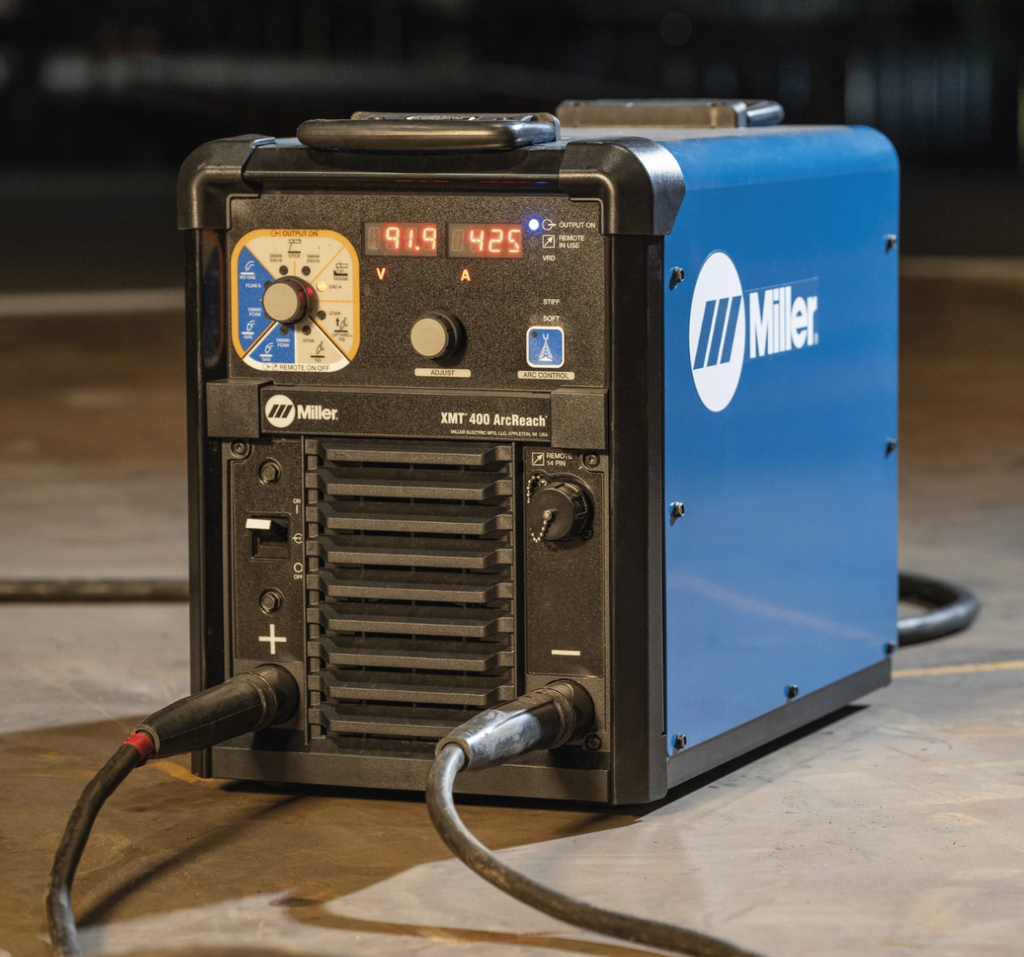

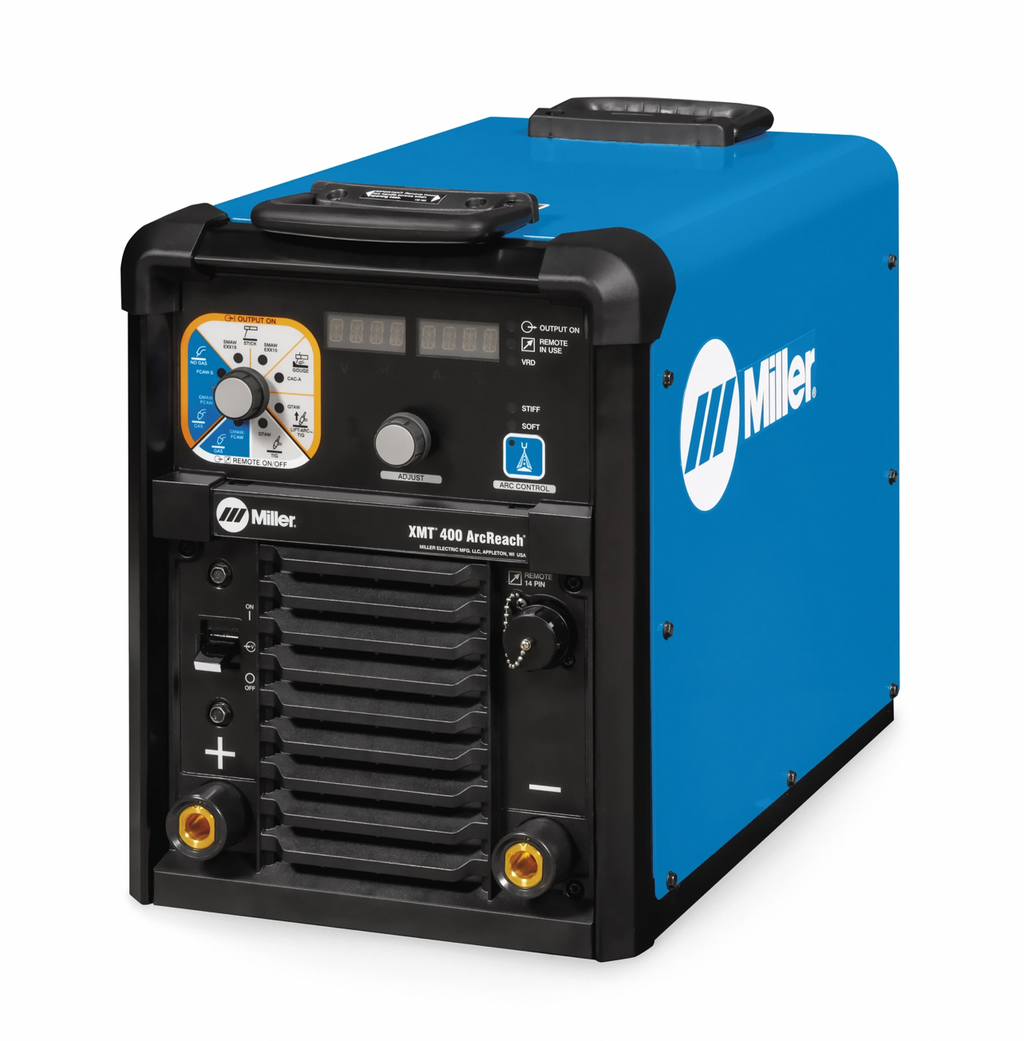

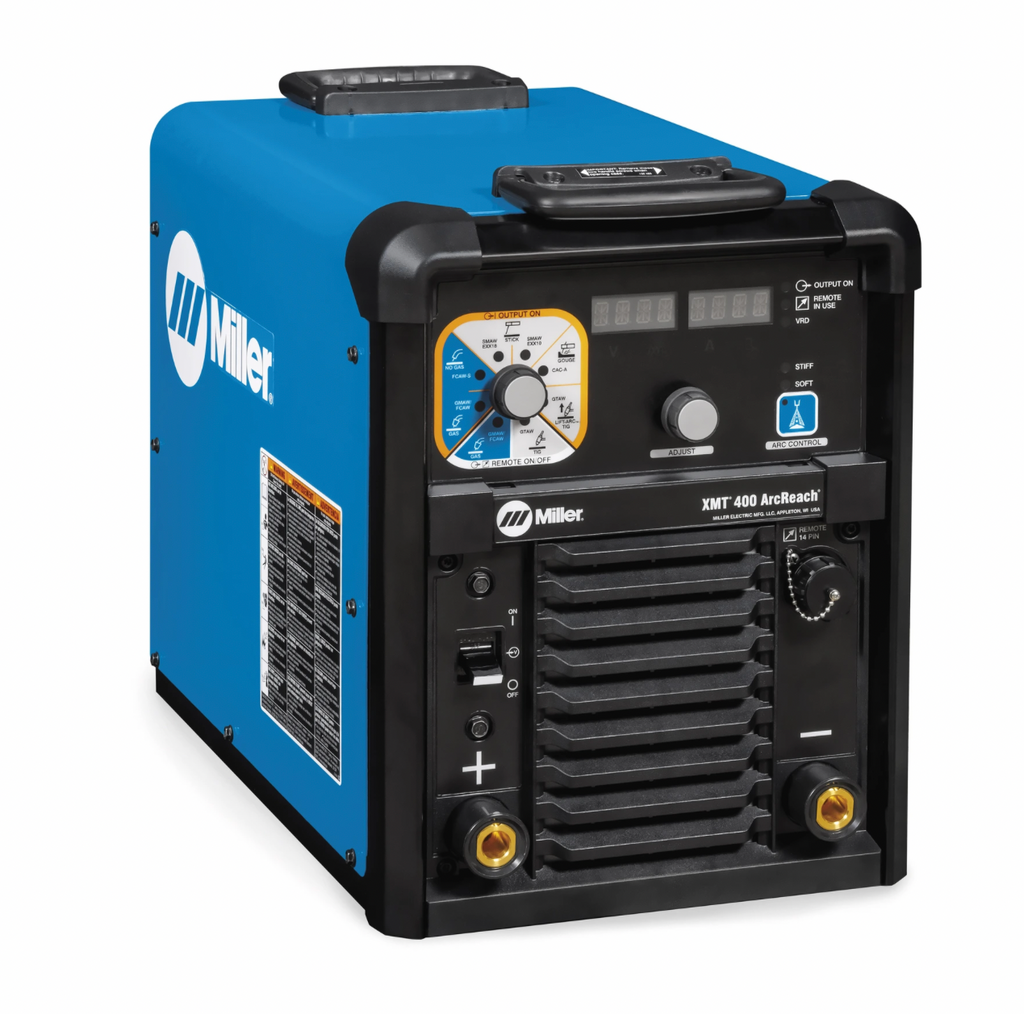

- Extensively field-proven XMT 400 ArcReach welders and ArcReach feeders and remotes deliver the performance you need with ruggedly constructed internal components and Wind Tunnel Technology™.
- No more expenses related to maintaining or replacing easily damaged control cords because the weld cables are used to communicate weld parameters between the wire feeder and power source.
- Autoline For portability and reliability, Auto-Line allows for any input voltage hookup (380–575 V, three-phase) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable input power
- Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
- More control for weld operators with quick, easy adjustments at the wire feeder/remote. Weld operators can Adjust While Welding (AWW™) to change weld parameters while the arc is on.
- Inadvertent parameter changes by other jobsite workers can be easily avoided because connecting an ArcReach accessory from the power source automatically locks out the power source’s panel controls. Return to a previous weld process faster because the power source is restored to the previously used weld process and parameter settings once the ArcReach accessory is removed.
- Decrease the chance of an incorrect weld process being used because Auto-Process Select™ automatically sets the power source to the correct weld process based on the polarity applied to the weld accessory. Process selector switch reduces the number of control setup combi nations without reducing any features.
- Adaptive Hot Start™ helps promote a fast positive arc ignition helping minimize defects. Infinite arc control available in the stick and wire modes for easier fine tuning of tough-to weld materials and out-of-position applications.
