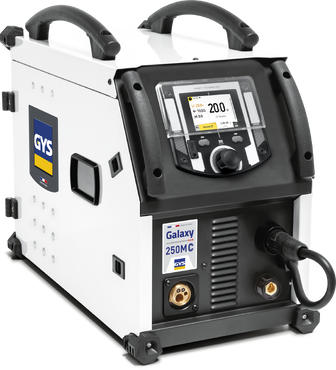

GYS 084858 GALAXY 250M Pulsed MIG Multi-Process 240V [2502]
Roll over image to zoom in
GYS 084858 GALAXY 250M Pulsed MIG Multi-Process 240V [2502]
GYS 084858 GALAXY 250M Pulsed MIG Multi-Process 240V [2502]

GYS 084858 GALAXY 250M Pulsed MIG Multi-Process 240V

Save £401.40
Free UK Delivery*
GYSOur Code: 2502 GYS's Code: 084858 Shelf: LEE02 Group: 047A
Price (per unit):
£2,274.60 £2,676

Inc. VAT:£2,729.52

Or Call Us
01372 230456

Features

  • Single-phase pulsed MIG/MAG generator with digital technology for high performance welding.
  • Features numerous synergic curves and exceptional arc dynamics for superior weld quality.
  • Intuitive digital interface allows for quick and easy adjustments of welding parameters.
  • Equipped with a precise and powerful 4-roller wire feed system for reliable wire feeding.
  • Multi-process welding capabilities: MIG/MAG, MMA DC/Pulse, and TIG DC/Pulse.
  • Synergic mode automatically determines optimal welding conditions based on material, gas, and wire diameter.
  • Accurate calibration of wire feed speed to adjust voltage measurement and refine energy calculation.
  • Traceability function records all welding steps for industrial manufacturing in line with EN ISO 3834.
  • Optimized MIG/MAG settings with 6 welding modes: Standard Dynamic, Standard Impact, Standard Root, Pulsed, Modularc, and Manual.
  • Features TACK modes (SPOT and DELAY) and trigger options (2T and 4T) for versatile welding control.

Specifications

EAN Code 3154020061842
Weight 29.5 kg
Welding Processes MIG/MAG, MMA DC/Pulse, TIG DC/Pulse
MIG/MAG Wire Diameter (Steel/Stainless) 0.6 to 1.0 mm
MIG/MAG Wire Diameter (Aluminum) 0.8 to 1.2 mm
MIG/MAG Wire Diameter (CuSi/CuAl) 0.8 to 1.0 mm
MMA Electrode Diameter Up to 5 mm
MIG-MAG Welding Modes Standard Dynamic, Standard Impact, Standard Root, Pulsed, Modularc, Manual
Tack Modes Spot and Delay
Trigger Options 2T and 4T
Compatible Wire Reels Ø 200/300 mm
Input Voltage 230V
Input Power 15 kVA
Protection Class IP23S
Dimensions 61 x 32 x 49 cm

Summary

The GALAXY 250M-C is a compact, multi-process, single-phase inverter welding machine. With a MIG/MAG pulse function, it delivers very precise control of the welding energy, reducing deformation of the workpiece. Pulse synergy increases welding speeds and reduces spatter, while also improving the aesthetics of the weld bead. Excellent for welding thin aluminium and stainless steel, the GALAXY 250M-C is a modern transportable solution for smooth, touch-up-free welds.

Documentation

Fact Sheet
Owner's Manual
Brochure
Instruction Manual

Included within this package

The following items are supplied within this package.

GYS Standard 3 Years Parts & Labour Warranty

This product is covered by the GYS Standard 3 Years Parts & Labour Warranty.

GYS backs its equipment with a 3-year warranty from the date of purchase, covering parts and labour for manufacturing or workmanship defects. In practical terms, that gives customers clear cover against faults that should not happen under normal use, while keeping the warranty simple and easy to understand. Official GYS manuals also state exclusions such as transit damage, normal wear, misuse, and damage caused by an incorrect power supply.

For more information, please see the manufacturer's warranty terms and conditions, or to make a claim, contact us directly.

MULTI-PROCESS

  • A power source for all manual welding applications:

MIG/MAG pulse:

- steel wire: Ø 0.6 to 1.0 mm

- stainless steel wire: Ø 0.8 to 1.0 mm

- aluminium wire: Ø 0.8 to 1.2 mm

- flux-cored wire (inverted polarity): Ø 0.9 to 1.2 mm

  • MMA DC / Pulse: basic and rutile electrodes.
  • TIG DC Lift / Pulse.

INTELLIGENT

+40 synergies on various materials: Steel, AlMg, AlSi, CrNi, CuSi.

New intuitive, multilingual 3.5’’ HMI.

Full machine and synergy updates via USB stick.

Job memory for up to 200 welding programs for recurring tasks.

Portability function: user JOBS and machine configuration can be loaded/saved/transported

Via USB stick.

Traceability of all weld beads in accordance with EN 3834.

Calibration mode for welding accessories to adjust the voltage displayed.

User mode for sharing the product with several users.

Free online tool for customising the interface.

PREMIUM MIG/MAG WELDING

4 welding modes:

- Standard: ideal for fast, simple welding applications.

- Pulse: reduces spatter and touch-ups in all welding positions.

- ModulArc: ideal for assembling aluminium alloys that require aesthetic appeal.

- Manual: suitable for experienced welders and DMOS welding.

 Digital arc control with instant ignition and no cratering at the end of the bead.

Arc pulse delivers up to 30% higher welding speeds.

4-roller motorised wire feeder with digital encoder for precise wire feed.

ROBUST AND MOBILE

 2 handles for easier mobility.

Reinforced metal case & non slip rubber pads.

Compatible with engine–generator (18 kVA) & extension leads up to 100 m.

IP23S rated to cope with demanding environments.

Easy polarity change on front panel.

LED lighting on wire feeder and spool.

Viewing window to check filler wire consumption
