Features
- Nb-stabilized basic coated electrode for welding Nb- or Ti-stabilized stainless steels of the 19Cr10Ni type.
- Provides exceptional hot-cracking resistance in the ASTM SFA/AWS E347-15 (347) stainless steel range.
- Ferrite content FN 6-12 limits maximum working temperature to 400°C.
- Designed for use with DC+ welding current for optimal arc stability.
- Austenitic CrNi alloy composition delivers excellent corrosion resistance.

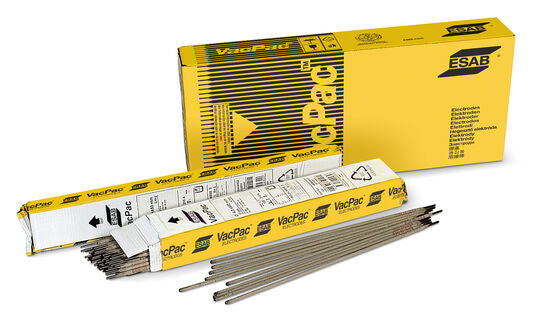

- ESAB VacPac™ hermetically sealed, vacuum-packed packaging protects electrodes from moisture uptake.
- Basic coating type for demanding applications with low spatter and stable performance.
- Deposition rate of 1.2 kg/h and 64 sec fusion time per electrode at 90% Imax for the 3.2×350 mm variant.
- Typical tensile strength of 620 MPa and 40% elongation in the as-welded condition.
Specifications
Last Modified | 28/06/2025, 08:25:09 |
Weight | 5.1 kg |
Length | 35 cm |
Data Sheet | https://esab.com/ro/eur_en/products-solutions/filler-metals-pdf?filename=mdm-productfamily-13212&siteid=eur_en&countryname=ROM&countrylocale=en-zz |
Classifications | EN ISO 3581-A: E 19 9 Nb B 2 2; SFA/AWS A5.4: E347-15; Werkstoffnummer: 1.4551 |
Approvals | VdTÜV: 05663 (based on factory location) |
Welding Current | DC+ |
Ferrite Content | FN 6-12 |
Alloy Type | Austenitic CrNi |
Coating Type | Basic |
Typical Tensile Properties (As Welded) | Yield Strength 500 MPa; Tensile Strength 620 MPa; Elongation 40% |
Typical Tensile Properties (Stress Relieved 16 h @ 600 °C) | Yield Strength 500 MPa; Tensile Strength 640 MPa; Elongation 40% |
Typical Charpy V-Notch (As Welded @ 20 °C) | Impact Value 100 J |
Typical Charpy V-Notch (Stress Relieved 16 h @ 600 °C @ 20 °C) | Impact Value 80 J |
Typical Charpy V-Notch (As Welded @ -60 °C) | Impact Value 70 J |
Typical Charpy V-Notch (Stress Relieved 16 h @ 600 °C @ -60 °C) | Impact Value 40 J |
Typical Weld Metal Analysis | C 0.04%; Mn 1.7%; Si 0.4%; Ni 10.2%; Cr 19.5%; N 0.07%; Nb 0.61%; FN WRC-92 8 |
Deposition Data (3.2 × 350 mm) | Current 75-110 A; Voltage 23 V; Efficiency 62%; Fusion time per electrode at 90% Imax 64 sec; Deposition Rate 1.2 kg/h |
