Features
- Low alloy electrode with 0.5% Mo for welding pressure vessel steels.
- Suitable for welding joints in inclined positions.
- Adapted for welding with low currents, ideal for pipe welding.

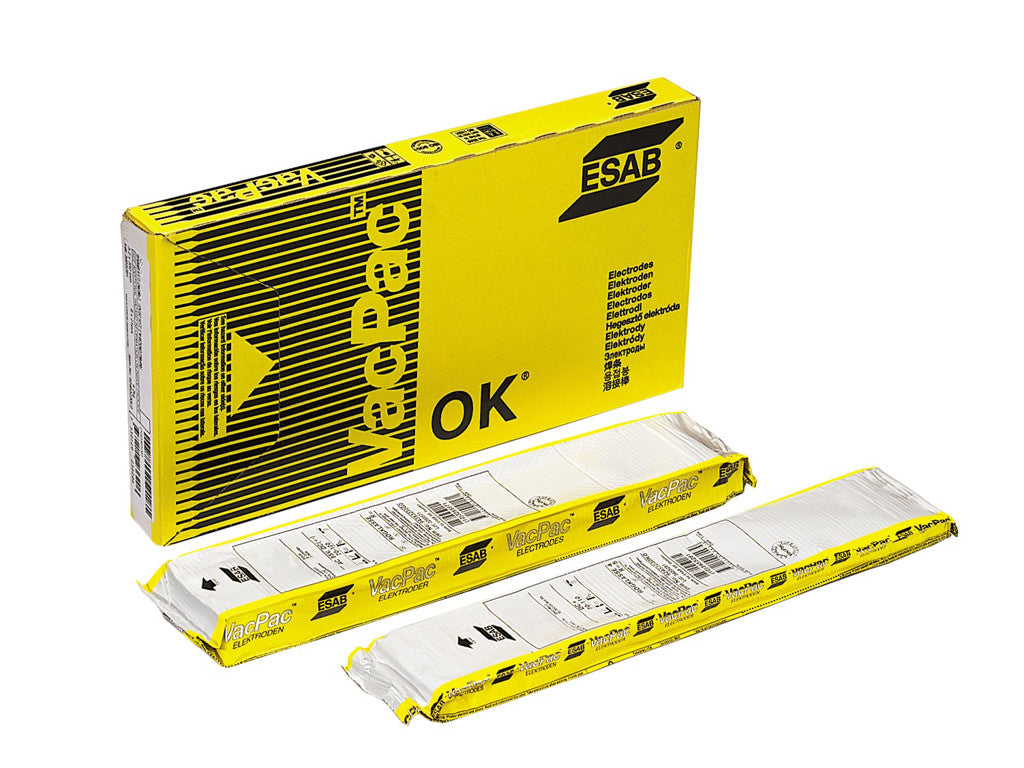

- Hermetically sealed VacPac packaging to prevent moisture absorption.
- Can be used directly from the package without re-baking.
- Compatible with AC and DC+ welding currents.
- Diffusible hydrogen content less than 5ml/100g.
- Basic covering type for optimal performance.
- Minimum AC open circuit voltage (OCV) of 65.
- Typical tensile properties: Yield Strength 460 MPa, Tensile Strength 560 MPa, Elongation 27%.
- Typical Charpy V-Notch properties: Impact Value 175 J at 20°C.
- Typical weld metal analysis: C 0.05%, Mn 0.77%, Si 0.38%, Cr 0.04%, Mo 0.57%.
- Deposition data for various diameters and currents available.
- Classifications: SFA/AWS A5.5 : E7018-A1; EN ISO 3580-A : E Mo B 3 2 H5.
- Approvals: CE : EN 13479; DB : 10.039.45; VdTÜV : 01043.
Specifications
Last Modified | 28/06/2025, 08:25:08 |
EAN Code | 7330129187577 |
Weight | 10.2 kg |
Length | 35 cm |
Classifications | SFA/AWS A5.5 : E7018-A1; EN ISO 3580-A : E Mo B 3 2 H5 |
Approvals | CE : EN 13479; DB : 10.039.45; VdTÜV : 01043 |
Welding Current | AC, DC+ |
Diffusible Hydrogen | < 5ml/100g |
Alloy Type | Low alloyed (0.5 % Mo) |
Coating Type | Basic covering |
Min AC OCV | 65 |
Typical Tensile Properties | Yield Strength: 460 MPa; Tensile Strength: 560 MPa; Elongation: 27 % |
Typical Charpy V-Notch Properties | Impact Value: 175 J at 20°C |
Typical Weld Metal Analysis | C: 0.05; Mn: 0.77; Si: 0.38; Cr: 0.04; Mo: 0.57 |
Deposition Data | Diameter: 3.2 x 350 mm, Current: 105-150 A, Voltage: 23 V, Efficiency: 54 %, Fusion time per electrode at 90% I max: 66 sec, Deposition Rate: 1.0 kg/h |
