Features
- European design
- Suitable for Argon/CO2 gas service
- Double protection for gauges incl. special metal cage
- Safety protected with integrated pressure relief valve for overpressure protection
- Easy handling for the operator by ergonomic arrangement
- Three scale pressure gauges acc. to ISO 5171
- Encapsulated regulating technology for precise and stable control
- Safety focused ISO 2503
- Available with NEVOC connection
- Up to 300 bar cylinder pressure
- Flow capacity of 0-40 l/min
- Bottom entry inlet position
- Inlet connection: G5/8" LH
- Outlet connection: G3/8" LH
- Brass forged body with EPDM diaphragm and PA seat sealing
Specifications
Gas Service | Argon/CO2 |
Flow Capacity | 0-40 l/min |
Inlet Position | Bottom Entry |
Inlet Connection | G5/8" LH |
Outlet Connection | G3/8" LH |
Body Material | Brass forged |
Diaphragm Material | EPDM |
Seat Sealing Material | PA |
Maximum Inlet Pressure | 25 bar |
Compliance | ISO 2503 |
Description

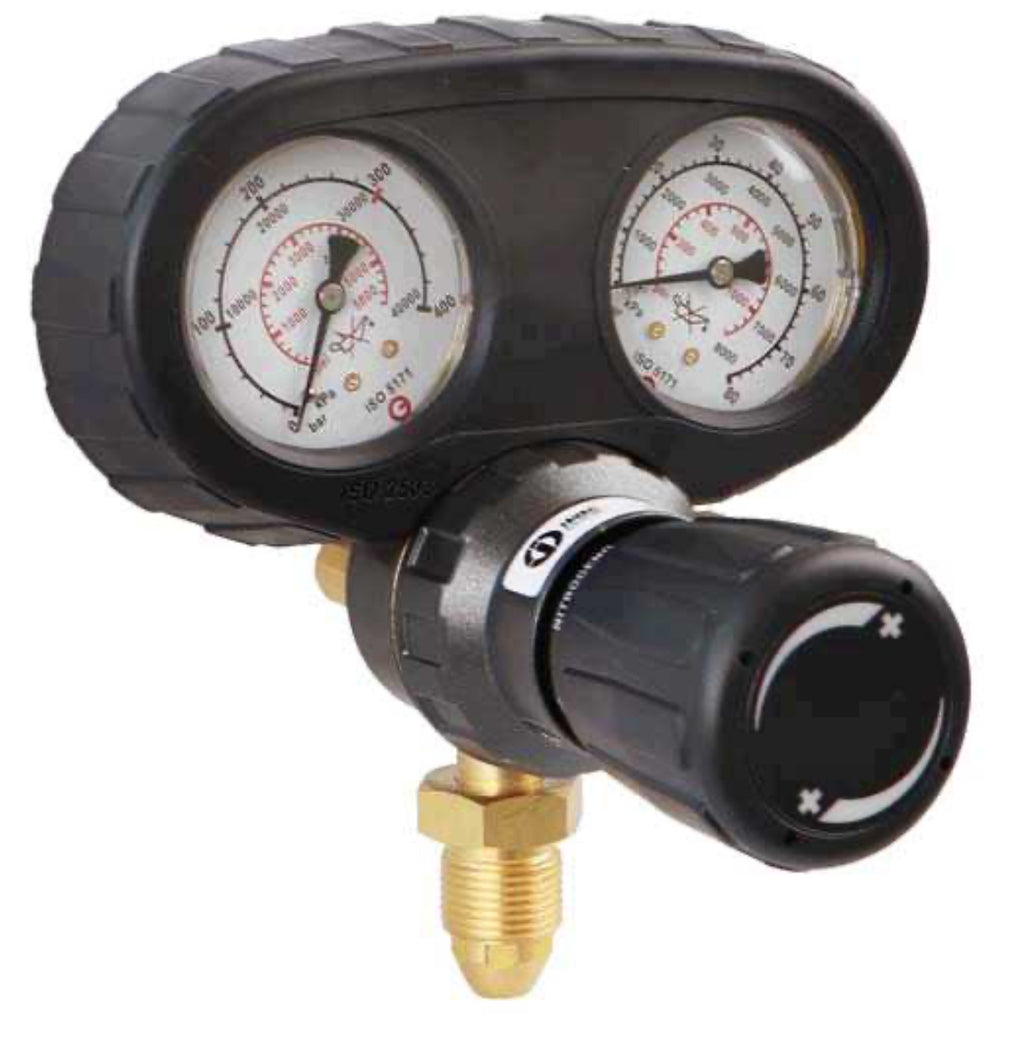

EDGE 3 Series single stage gas regulator
Forged brass body
Zinc-aluminium bonnet
High impact ABS gauge for increased durability
40mm high contrast steel gauges
External self reseating relief valve
Sintered inlet filter - nickle plated bronze
SLAM impact absorbing safety knob
Achieves ASTM G - 175 promoted ignition test
Meets ISO 2503
