Features

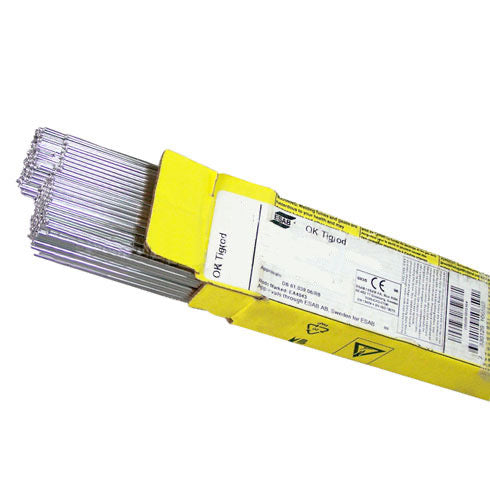

- OK Tigrod 4043 is one of the most widely used welding alloys.
- Used for welding AlMgSi - types and AlSi - alloys with up to 7% Silicon.
- Not recommended for anodizing.
- Non-heat treatable.
Specifications
Weight | 2.5 kg |
Data Sheet | https://www.elmdale.co.uk/files/ESAB_OK_Tigrod_4043_PDS.pdf |
Alloy Type | AlSi |
Shielding Gas | I1, I3 (EN ISO 14175) |
Wire Diameter | 3.2mm |
Approvals | CE EN 13479, DB 61.039.06, JIS Z 3232, CWB AWS A5.10/A5.10M:2012 (ER4043) |
Classification Wire Electrode | EN ISO 18273:S Al 4043 (AlSi5), JIS Z 3232:A4043, SFA/AWS A5.10:R4043 |
Typical Wire Composition % Mn | 0.01 |
Typical Wire Composition % Si | 5.00 |
Typical Wire Composition % Al | Rem |
Typical Wire Composition % Cu | 0.02 |
Typical Wire Composition % Fe | 0.14 |
Typical Wire Composition % Ti | 0.01 |
Typical Wire Composition % Zn | 0.01 |
Condition | As welded |
Yield Strength | 55 MPa (8 ksi) |
Tensile Strength | 124 MPa (18 ksi) |
Elongation | 18% |
Description
4043 is one of the most widely used welding alloys.
The alloy is used for welding AlMgSi - types and AlSi - alloys with up to 7% Silicon.
Not recommended for anodizing.
Non-heat treatable
Documentation
