ESAB 132624R150 13.26 TIG Wire 2.4mm (5 Kilo) 0.3Ni 0.3Cu For Weathering Steels Corten

Free UK Delivery*
ESABOur Code: 0824 ESAB's Code: 132624R150 Shelf: R03 Group: 014

Price (per pack):
£148.65

Incl. Tax: £178.38

Or Call Us

Features

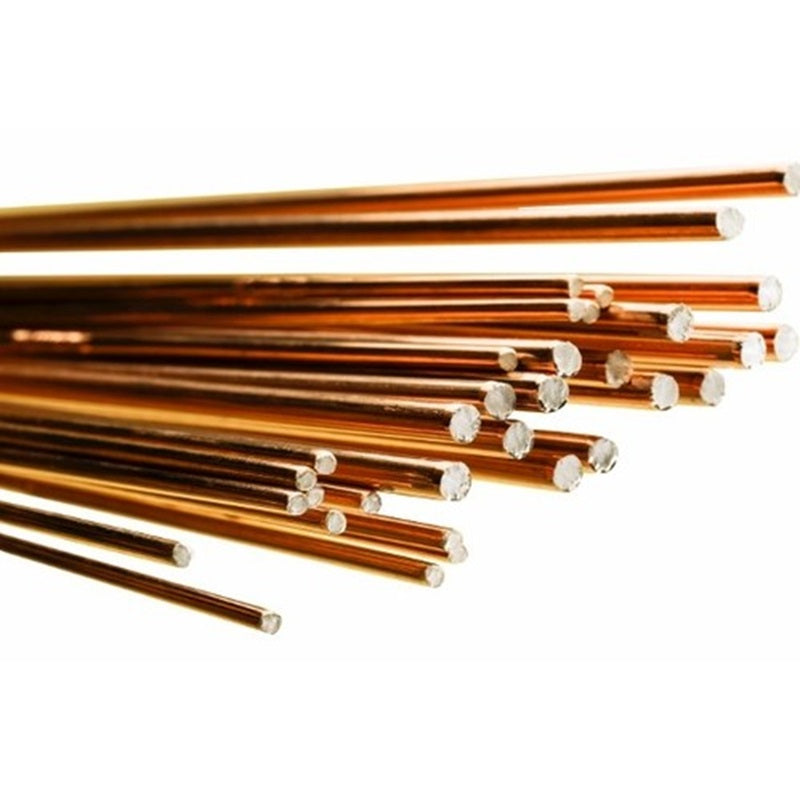

  • Copper-coated, low-alloyed nickel-copper GTAW rod with 0.8% Ni and 0.45% Cu
  • Specifically designed for welding weathering steels such as COR-TEN, Patinax, Dillicor
  • Meets NACE sour gas application requirements with nickel content below 1% and maximum weld metal hardness ≤22 HRC
  • Suitable for welding high-strength steels with yield strengths up to 470 MPa
  • Classification per EN ISO 636-A: W 46 6 Z 3Ni1Cu; EN ISO 636-A: W Z 3Ni1Cu; SFA/AWS A5.28: ER80S-G
  • Approved to CE (EN 13479), UKCA (EN 13479), and DNV-GL (IV YM (I1)) standards
  • Recommended shielding gas: I1 (EN ISO 14175)
  • Typical tensile properties (As Welded): 490 MPa yield; 580 MPa tensile; 30 % elongation
  • Typical tensile properties (Stress Relieved 2 h @ 650 °C): 430 MPa yield; 545 MPa tensile; 32 % elongation
  • Excellent Charpy V-Notch toughness across -60 °C to 20 °C, yielding up to 230 J at 20 °C
  • Typical weld metal analysis: C 0.07 %; Mn 1.3 %; Si 0.7 %; S 0.015 %; P 0.015 %; Ni 0.8 %; Cu 0.35 %
  • Typical wire composition: C 0.095 %; Mn 1.32 %; Si 0.80 %; Ni 0.8 %; Cr 0.06 %; Mo 0.006 %; Cu 0.5 %
  • Wire diameter: 2.4 mm
  • Pack weight: 5 kg

Specifications

Last Modified 28/06/2025, 08:26:12
Weight 5 kg
Data Sheet https://www.elmdale.co.uk/files/ESAB_OK_Tigrod_13.26_PDS.pdf
Classification EN ISO 636-A: W 46 6 Z 3Ni1Cu; EN ISO 636-A: W Z 3Ni1Cu; SFA/AWS A5.28: ER80S-G
Approvals CE (EN 13479); UKCA (EN 13479); DNV-GL (IV YM (I1))
Alloy Type Low-alloyed steel (0.8 % Ni, 0.4 % Cu)
Shielding Gas I1 (EN ISO 14175)
Wire Diameter 2.4 mm
Typical Tensile Properties (As Welded) Yield Strength 490 MPa; Tensile Strength 580 MPa; Elongation 30 %
Typical Tensile Properties (Stress Relieved 2 h @ 650 °C) Yield Strength 430 MPa; Tensile Strength 545 MPa; Elongation 32 %
Typical Charpy V-Notch Impact Values (EN I1 As Welded) 20 °C 200 J; -20 °C 140 J; -40 °C 100 J; -60 °C 60 J
Typical Charpy V-Notch Impact Values (AWS I1 Stress Relieved 2 h @ 650 °C) 20 °C 230 J; -20 °C 210 J; -40 °C 170 J; -60 °C 160 J
Typical Weld Metal Analysis (%) C 0.07; Mn 1.3; Si 0.7; S 0.015; P 0.015; Ni 0.8; Cu 0.35
Typical Wire Composition (%) C 0.095; Mn 1.32; Si 0.80; Ni 0.8; Cr 0.06; Mo 0.006; Cu 0.5
Application GTAW of weathering steels such as COR-TEN, Patinax, Dillicor
Maximum Weld Metal Hardness ≤22 HRC
Suitable for High Strength Steels Minimum yield strength <470 MPa
