Features
- H4 R approved
- Low diffusible hydrogen to reduce the risk for cold cracking
- Outstanding low moisture pick up
- High efficiency bringing productivity
- Extremely good weldability in vertical-up position
- Exceptional weld appearance
Specifications
Weight | 10.2 kg |
Length | 350 mm |
Data Sheet | https://www.elmdale.co.uk/files/ESAB_OK_4800_PDS.pdf |
Classifications | SFA/AWS A5.1: E7018 H4 R, EN ISO 2560-A: E 42 4 B 42 H5 |
Approvals | ABS 3Y H5; BV 3Y H5; CE EN 13479; DB 10.039.12; DNV-GL 3Y H5; LR 3Y H5; PRS 3Y H5; RINA 3Y H5; UKCA EN 13479; VdTÜV 00690 |
Welding Current | DC+(-) |
Diffusible Hydrogen | < 4.0 ml/100 g |
Alloy Type | Carbon Manganese |
Coating Type | Basic covering |
Diameter | 2.5 mm |
Grade | E7018 H4 R |
Last Modified | 28/06/2025, 08:25:18 |
Width | 0.2 cm |
Classification | SFA/AWS A5.1 : E7018 H4 R; EN ISO 2560-A : E 42 4 B 42 H5 |
Typical Yield Strength (as welded) | 475 MPa |
Typical Tensile Strength (as welded) | 565 MPa |
Typical Elongation (as welded) | 29 % |
Charpy V-Notch Impact (AWS –30 °C) | 130 J |
Charpy V-Notch Impact (ISO –40 °C) | 115 J |
Weld Metal Analysis C | 0.06 % |
Weld Metal Analysis Mn | 1.1 % |
Weld Metal Analysis Si | 0.5 % |
Summary
Documentation

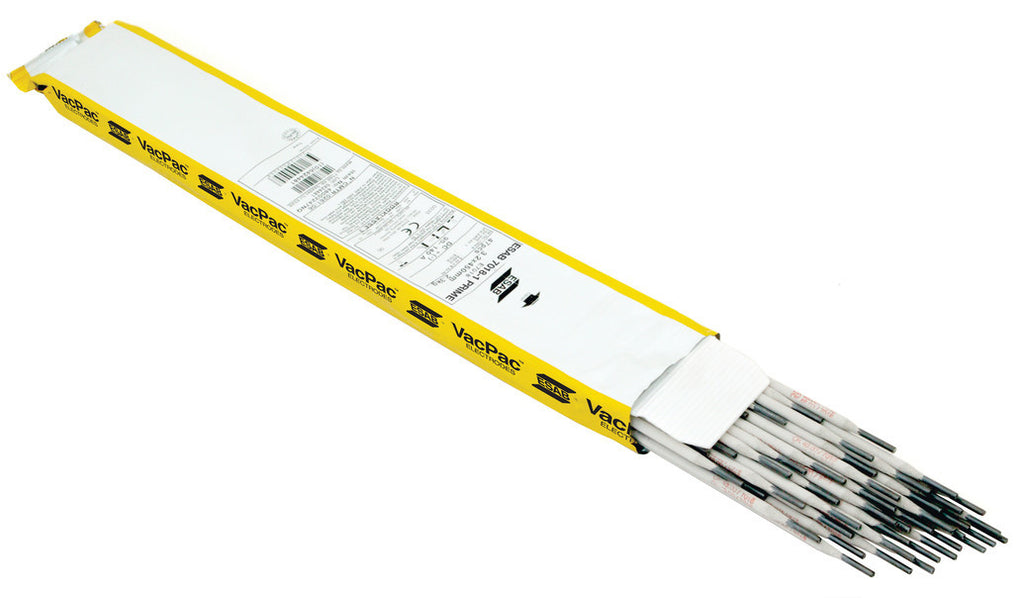

A reliable, general purpose electrode for manual metal arc welding of carbon steels, carbon manganese steels and fine-grained carbon manganese steels with elevated yield strength.
OK 48.00 deposits a tough, crack-resistant weld metal.
The coating is of the low moisture absorption type. High welding speed in the vertical-up position
OK 48.00 is insensitive to the composition of the base material within fairly wide limits.
The electrode can be used for welding structures where difficult stress conditions cannot be avoided
4 R approved
Low diffusible hydrogen to reduce the risk for cold cracking
Outstanding low moisture pick up
High efficiency bringing productivity
Extremely good weldability in vertical up position
Exceptional weld appearance
