HMT 506010-SET1 VersaDrive ImpactaStep Cutter Set 16, 22, 26mm

Save £46.88
Free UK Delivery*
HMTOur Code: 8609 HMT's Code: 506010-SET1 Shelf: HMT Group: 156

Price (per set):
£246.12 £293

Incl. Tax: £295.34

Or Call Us

Features

  • Combines five heavy-duty drill bits in one step cutter tool
  • Drill and enlarge holes in metal up to 12 mm thick
  • Safety collar prevents injury and damage when using the largest step
  • Straight flute design with size markings at each step for strength and easy resharpening
  • Industrial grade Titanium Nitride coating reduces heat buildup and burn-out
  • Patented non-slip hex shank ensures secure operation in standard 1/2" drill chucks or VersaDrive adapters
  • VersaDrive patented shank and modular adapters provide exceptional jobsite flexibility
  • Impact-rated dual hardening process enables up to 15× faster speeds on impact wrenches
  • Optimized for use with impact wrenches, impact drivers, cordless and pistol drills, and VersaDrive magnet drills
  • Pilot drilling recommended to enhance operation speed and extend tool life
  • Use proper lubrication and correct RPM settings to achieve long tool life
  • For reaming, start with tool rotating and apply steady pressure to the cut

Specifications

Last Modified 28/06/2025, 08:25:16
Data Sheet https://cdn.shopify.com/s/files/1/0340/0965/files/Impactastep_Data_Sheet_7fcca259-0e89-4921-991b-d1f843bd937b.pdf?v=1674127418
Product Type Reamer

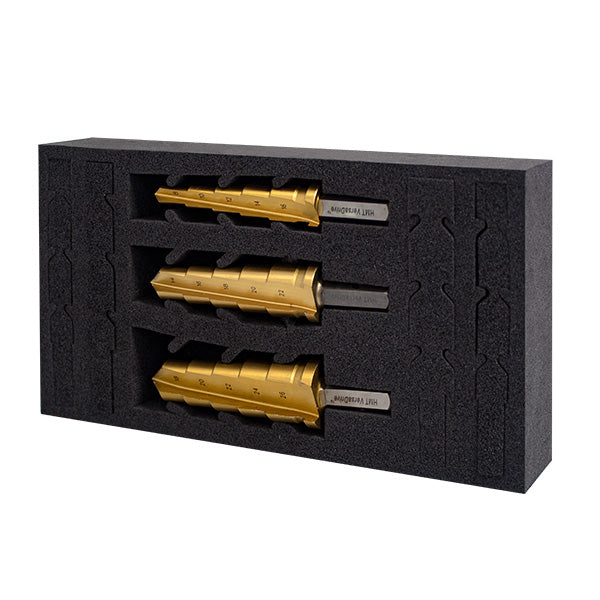

Set Composition 3-piece cutter set with maximum diameters of 16 mm, 22 mm and 26 mm
Cutting Steps 5 individual cutting diameters per cutter
Diameter Increments 2 mm step increments
Material Thickness Capacity Up to 12 mm
Flute Design Straight flute design for strength and easy resharpening
Shank Type Patented non-slip hex shank fits 1/2" drill chucks and VersaDrive RapidLock adapters
Coating Industrial grade Titanium Nitride
Safety Feature Safety collar prevents injury and damage on largest step
Impact Rating Dual hardening process, impact-rated performance for up to 15× faster speeds
Compatible Tools Impact wrenches, impact drivers, cordless and pistol drills, VersaDrive magnet drills
Pilot Drilling Recommendation Pilot drilling recommended for faster operation and enhanced tool life
Lubrication Use appropriate lubrication and correct RPM to achieve long tool life
Material Compatibility Structural steel (<500 MPa & <1000 MPa), stainless steel (INOX), brass, grey cast iron, aluminium
Torque Range Recommended impact torque range 200–575 Nm (depending on cutter diameter)
RPM Range Recommended RPM range 290–1365 rpm (depending on cutter diameter and material)
