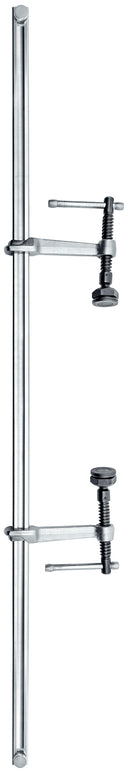

Features
- Clamping force up to 6,500 N
- Tipping is prevented through central positioning on the workpiece
- Special heat-resistant pressure plate, can be tilted by up to 35°
- Clamp can be fed through an opening in the workpiece/component
- Wide range of possible applications due to interchangeable sliding arm available in various different designs
- End fastenings on both sides can be loosened without tools - for rapid changeover
- Suitable for all SLV size sliding arms
Specifications
Last Modified | 28/06/2025, 08:24:40 |
EAN Code | 4008158036373 |
Weight | 5.25 kg |
Length | 150 cm |
Height | 12 cm |
Clamping Force | Up to 6,500 N |
Pressure Plate | Special heat-resistant, can be tilted by up to 35° |
Rail Dimensions | 28 x 11 mm |
Opening | 1500 mm |
Throat Depth | 120 mm |
Spreading Width | Min 340 mm / Max 1750 mm |
