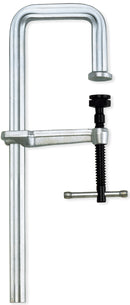

BESSEY SGU30-14-10 U-Shaped High-Performance Welders Clamp SGU 300/140

Save £52.95
Free UK Delivery*
BesseyOur Code: 3804 Bessey's Code: SGU30-14-10 Shelf: WIG

Price (each):
£138.95 £191.90

Incl. Tax: £166.74

Or Call Us

Features

  • Clamping force up to 12,000 N at tightening torque of 40 Nm
  • Step-over clamping, specially suited for T-profiles and I-profiles
  • Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35 degrees
  • The U-shaped fixed arm is produced and tempered from a single piece, thus very torsion resistant
  • The sliding arm is made from forged tempered steel and can withstand extremely large loads
  • The special tilting heat-resistant pressure plate is replaceable and can be tilted up to 35 degrees
  • The tempered spindle is particularly sturdy and wear-resistant
  • The sturdy tommy bar has special rounded hand-friendly ends; this also allows powerful and controlled clamping
  • Span wide: 300mm
  • Throat depth: 140mm

Specifications

Last Modified 28/06/2025, 08:25:37
EAN Code 4008158027043
Weight 3.75 kg
Length 55 cm
Width 21 cm
Height 4.5 cm
Clamping Force 12,000 N
Tightening Torque 40 Nm
Span Width 300 mm
Throat Depth 140 mm
Material Metal
Style Bar Clamp
Colour Grey
Item Dimensions 55 x 21 x 4.5 cm
Item Weight 3.75 kg

Description

BESSEY SGU30-14-10 U-shaped high-performance Welders clamp SG U 300/140, BE101893 - Clamping force up to 12,000 N at tightening torque of 40 Nm. Double-sided step-over clamping, specially suited for T-profiles and double T-profiles. Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°. Extremely sturdy, The U-shaped fixed arm is produced and tempered from a single piece, thus very torsion-resistant. This guarantees you maximum tensile strength and sturdiness.
