Features
- Clamping force up to 8,500 N at tightening torque of 40 Nm
- Heat-resistant pressure plate with sintered steel insert
- Pressure plate can be tilted up to 35°
- Opening size: 200 mm
- Durable and robust construction
- Made from alloy steel

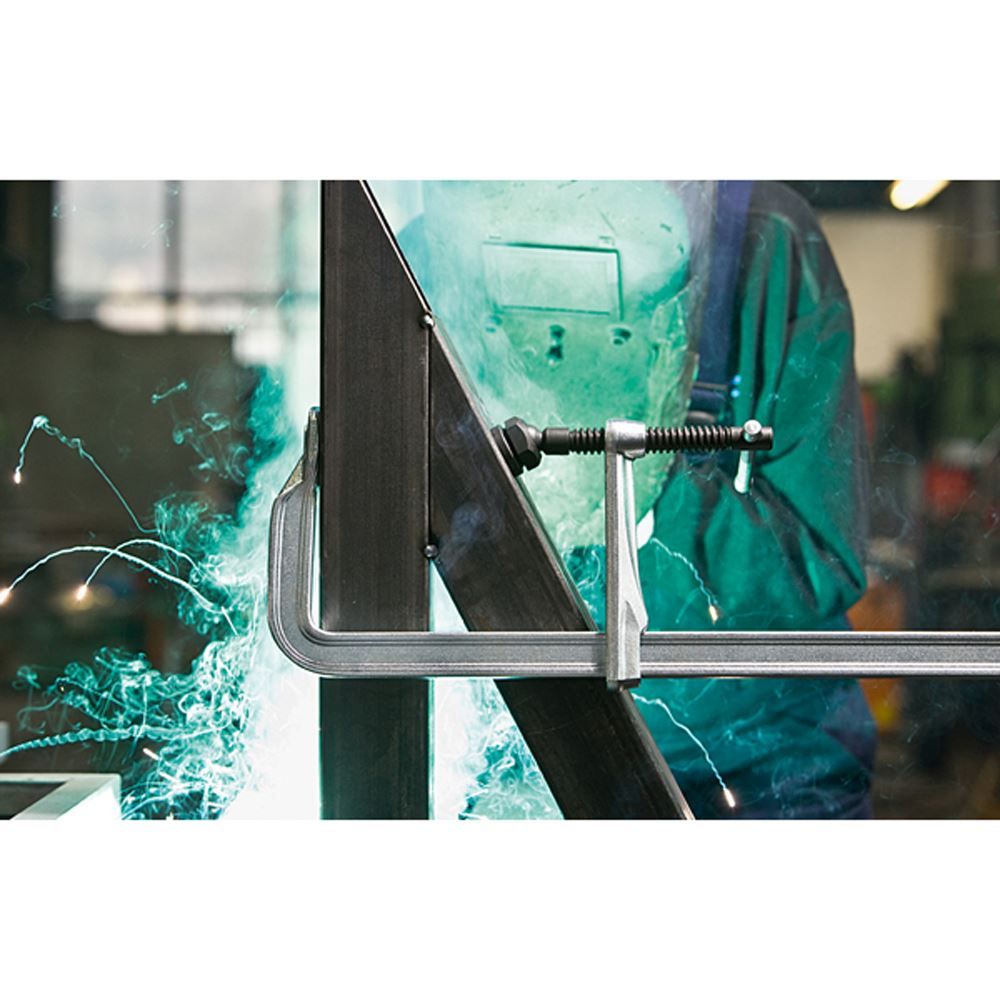

- Ideal for welding and heavy-duty clamping applications
Specifications
| Last Modified | 28/06/2025, 08:26:12 |
| EAN Code | 4008158031316 |
| Length | 30 cm |
| Width | 20 cm |
| Height | 30 cm |
| Clamping Force | Up to 8,500 N |
| Tightening Torque | 40 Nm |
| Pressure Plate Material | Heat-resistant with sintered steel insert |
| Pressure Plate Tilt | Up to 35° |
| Opening Size | 200 mm |
| Material | Alloy Steel |
| Dimensions | 30 x 20 x 30 cm |
| Weight | 0.5 kg |
Description

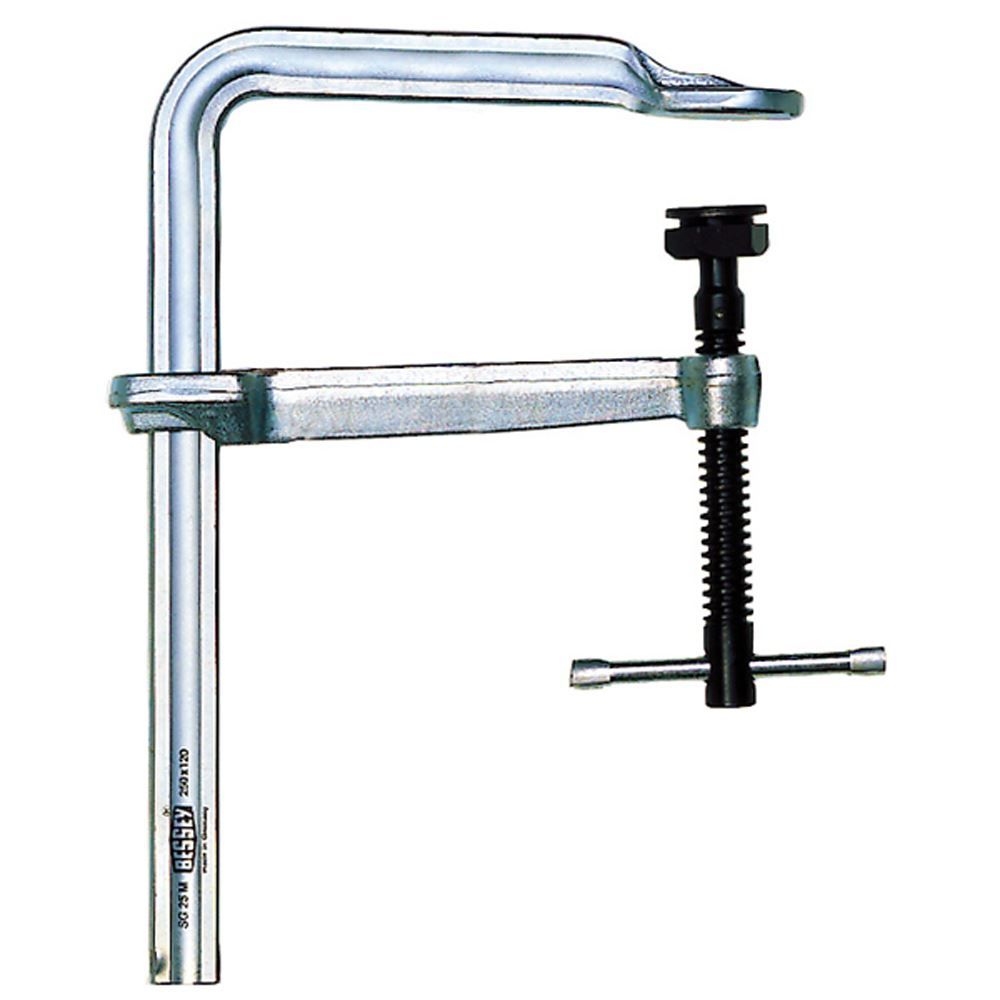

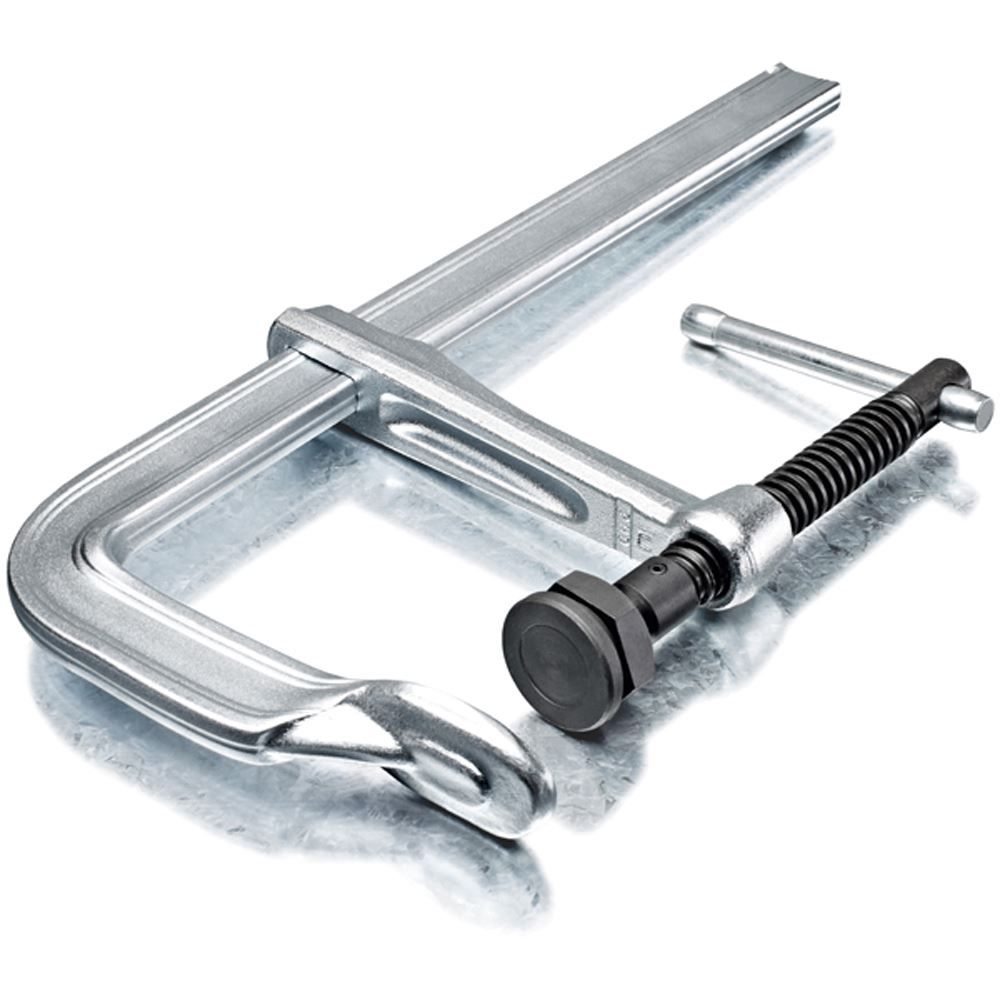

BESSEY SG30T20M High-performance Welders clamp SG 300/200, BE201826 - Clamping force up to 8,500 N at tightening torque of 40 Nm. Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°. Opening 200 mm
Documentation
