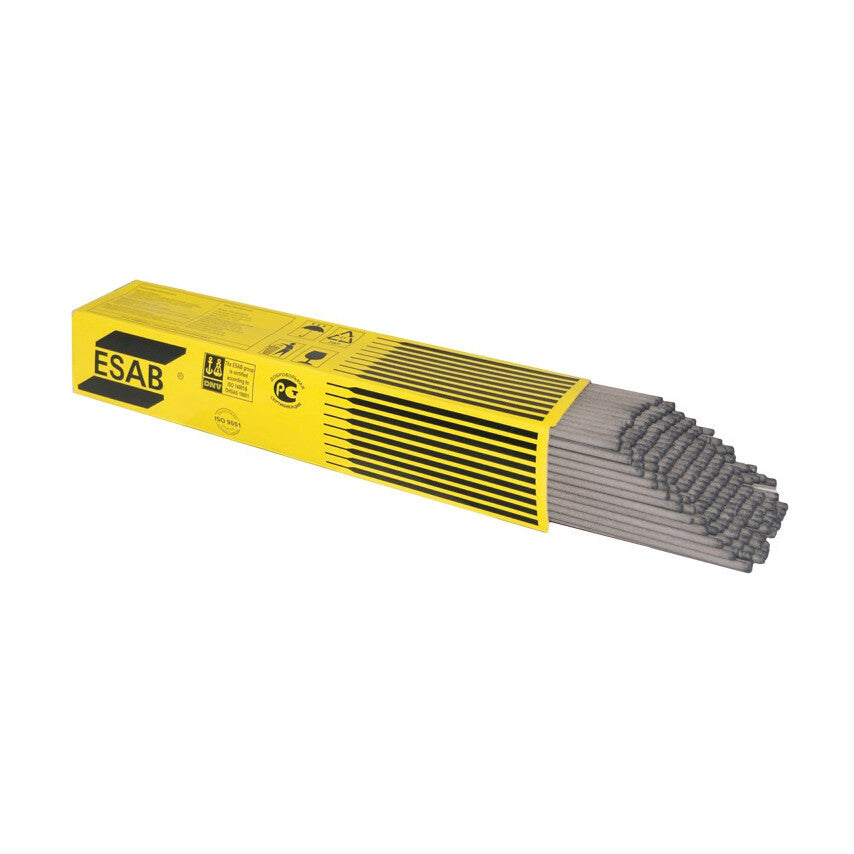

ESAB 4860323100 OK 48.60 7018 3.2mm x 350mm (13.5kg) Low Hydrogen Electrode

Save £104.36
Free UK Delivery*
ESABOur Code: 0424 ESAB's Code: 4860323100 Shelf: GUI01 Group: 006A

Price (per carton):
£137.20 £241.56

Incl. Tax: £164.64

Or Call Us

Features

  • General purpose DC+ electrode for mild and low alloy steels
  • Basic low hydrogen coating for minimal moisture pickup
  • Consistent mechanical properties with X-ray quality welds
  • Classified to SFA/AWS A5.1: E7018 and EN ISO 2560-A: E 42 4 B 42 H5
  • Approved by ABS, BV, CE (EN 13479), DB, DNV, LR, UKCA, VdTÜV
  • Operates on DC+ polarity
  • Diffusible hydrogen < 5.0 ml/100 g
  • Alloy type: Carbon Manganese
  • Yield strength (as welded): 445 MPa
  • Tensile strength (as welded): 540 MPa
  • Elongation (as welded): 28 %
  • Charpy V-Notch impact: 70 J at –40 °C
  • Typical weld metal analysis: C 0.06 %, Mn 1.1 %, Si 0.5 %
  • Deposition rate: 1.24 kg/h (3.2 × 350 mm)
  • Efficiency: 70 % at 90–140 A, 23 V
  • 42 electrodes per kg (3.2 × 350 mm)
  • Fusion time per electrode at 90 % Iₘₐₓ: 68 s

Specifications

Weight 13.5 kg
Length 35 cm
Classifications SFA/AWS A5.1: E7018; EN ISO 2560-A: E 42 4 B 42 H5
Approvals ABS: 3Y H5; BV: 3Y H5; CE: EN 13479; DB: 10.039.23; DNV: 3Y H5; LR: 3Y H5; UKCA: EN 13479; VdTÜV: 10094
Welding Current DC+
Diffusible Hydrogen < 5.0 ml/100 g
Alloy Type Carbon Manganese
Coating Type Basic covering
Yield Strength (As Welded) 445 MPa
Tensile Strength (As Welded) 540 MPa
Elongation (As Welded) 28 %
Impact Value (As Welded, -40°C) 70 J
Impact Value (As Welded, -30°C) 80 J
C 0.04%
Mn 1.19%
Si 0.64%
Diameter 3.2 x 350.0 mm
Current 90-140 A
Voltage 23 V
Efficiency 70%
Number of electrodes/kg weld metal 42
Fusion time per electrode at 90% I max 68 sec
Deposition Rate 1.24 kg/h
Last Modified 28/06/2025, 08:25:28
Testing Temperature (Charpy V-Notch) –40 °C
Impact Value (Charpy V-Notch) 70 J
Typical Weld Metal Analysis – C 0.06 %
Typical Weld Metal Analysis – Mn 1.1 %
Typical Weld Metal Analysis – Si 0.5 %
Deposition Data (3.2 × 350 mm) Current 90–140 A; Voltage 23 V; Efficiency 70 %; Electrodes per kg 42; Fusion time 68 s; Deposition rate 1.24 kg/h
