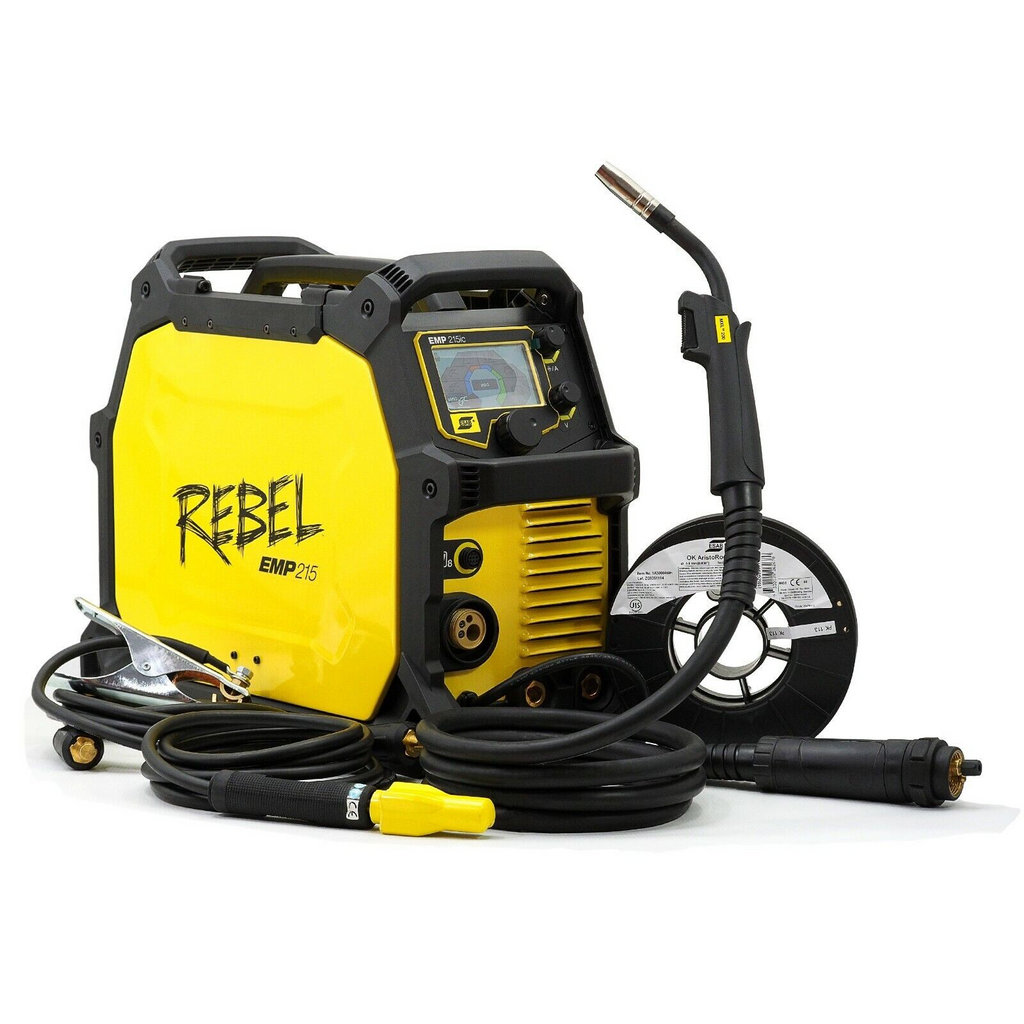

ESAB 0700300985 Rebel EMP 215ic MIG/MMA/Lift TIG Package 110/240V

Save £951.90
Free UK Delivery*
ESABOur Code: 7464 ESAB's Code: 0700300985 Group: 154

Price (per package):
£2,221.10 £3,173

Incl. Tax: £2,665.32

Or Call Us

Summary

The ESAB 0700300985 Rebel EMP 215ic is a versatile MIG/MMA/Lift TIG package with a 110/240V supply. It offers excellent performance on MIG, Flux-Cored, MMA, DC TIG, and industrial applications. The advanced DC TIG features include High Frequency Starts and a Pulse Mode up to 500 Hz. The exclusive sMIG technology adapts to the operator's welding technique for superior, repeatable welds. The device is portable and durable, weighing only 25.5 kg. It has a TFT Multilingual Display with 4 programmable memory locations for each process. The package includes a free ESAB Savage helmet and welders lined gauntlets, power source with 3 m mains cable and plug, MXL 201 MIG torch 3 m, electrode holder, earth return cable and clamp 3 m, and more. It comes with a 3-year parts and labor warranty.

Limited price reduction whilst stocks last.

Features

True All-Process – excellent performance on MIG, Flux-Cored, MMA (including 6010 electrodes), DC TIG and industrial applications.

Advanced DC TIG Features like High Frequency Starts, DC TIG also offers a Pulse Mode to 500 Hz.

sMIGTechnology -exclusive sMIG (“smart MIG”) feature continuously learns and adapts to the operator’s welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders.

Unmatched Portability and Durability –weighing in at only 25.5 kg, Rebel™ EMP 215ic with 5 handle roll cage can tackle any job around the shop or out at the job site.

TFT Multilingual Display –packed full of features, Rebel EMP 215ic has 4 programmable memory locations for each process, multi-language selection, trim adjustment, inductance control, pre/post flow control and spot weld setting -giving you the ability to fine tune your welds for the most optimal performance.

  • Compact site/workshop multiprocess MIG/ARC/TIG 110/240v supply
  • Primary Voltage 115/230 VAC
  • Supply Voltage Range 95 – 270 VAC
  • Number of Phases 1
  • Supply Frequency 50/60 Hz
  • Supply Plug 230 V, Schuko 16A plug
  • Rated kVA 4.5 kVA (120 V), 7 kVA (230 V)
  • Mains Cable 3 m 3x2,5 mm2 H07RN-F
  • Maximum Output 240 A
  • MIG Welding Output
  • 25% Duty Cycle 205 A/24.3 V (230 V)
  • 20% Duty Cycle 130 A/20.5 V (120 V)
  • MMA Welding Output
  • 25% Duty Cycle 180 A/27.2 V (230 V)
  • 40% Duty Cycle 90 A/23.6 V (120 V)
  • TIG Welding Output
  • 30% Duty Cycle 180 A/17.2 V (230 V)
  • 40% Duty Cycle 130 A/15.2 V (120 V)
  • 40% Duty Cycle 130 A/15.2 V (120 V)
  • Current Range 5 – 240 A (230 V), 5 – 150 A (120 V)
  • MIG Welding Voltage Range 10 – 26 V
  • Wire Feed Speed Range 1.5 – 12.1 m/min
  • Nominal OCV Volt/DC 68 V
  • Maximum Plate Thickness 9.5 mm
  • Wire Diameter Range:
  • Mild Steel 0.6 – 1.0 mm
  • Stainless Steel 0.8 – 1.0 mm
  • Aluminum 0.8 – 1.2 mm
  • Flux Cored 0.8 – 1.2 mm
  • Wire Spool Size 100 mm, 200 mm
  • Approvals CSA: E60974-1-00
  • CE: IEC/EN 60974-1, 5, 7, 10, 12 & 13. RoHS
  • Protection Class IP23S
  • Power Source Dimensions, Lx W x H 584 x 229 x 406 mm
  • Power Source Weight 18.2 kg
  • Rebel EMP 215ic offers the same multi process capabilities as the larger EMP 235ic,
  • It is configured to carry 200mm (5kg) spools
  • Equipped with a gas valve for built in gas control in TIG mode.
  • The Multi-process capabilities of the EMP 215ic combined with low weight and compact format makes this machine truly versatile
  • 3 years parts and labour warranty
  • Package Includes..
  • Limited offer free ESAB Savage helmet and welders lined gauntlets
  • Power source with 3 m mains cable and plug.
  • MXL 201 MIG torch 3 m.
  • Electrode holder, Earth return cable and clamp 3 m.
  • Gas Hose with quick connector 4.5 m.
  • Drive Rolls for 0.6, 0.8 and 1.0 mm wire.
  • Guide Tubes 0.6-1.2 mm.
  • Thickness Gauge Tool.
  • MIG torch accessory kit basic starter.
  • Reel ESAB 12.50 0.8mm MIG wire for steel.
